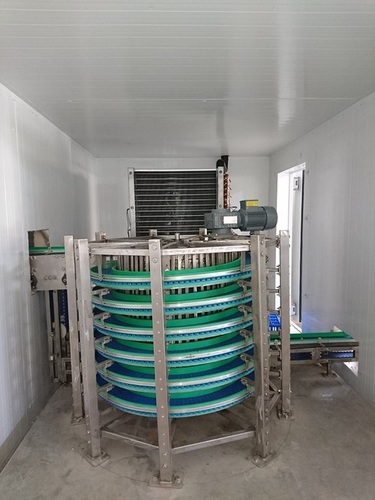

Spiral Freezer

In order to acquire the highest stage of customer's trust and creditability, we are engrossed in offering our patrons a quality checked Spiral Freezer. Suitable for preserving food that requires medium to low retention time, offered freezer is highly preferred due to its availability in numerous capacity. It is ideal to store perishable items like pizza, bread, sandwich etc. Besides, this Spiral Freezer is equipped with low tension wire and PLC controller. Apart from this, the provided freezer is available with us at market leading prices.

key Points:

• Reliable functionality
• Compact design
• Simplified installation
• Low power needed


REFRIGERATION FOR SPIRAL FREEZER

Equipment type : Spiral Freezer

Input capacity : 50 kg/hr Vegetables

Inlet Temperature : +15 Deg.C

Outlet temperature : -18 Deg.C

Inner cabinet Temperature : -35 Deg.c ±3 Deg.C

Cabinet : 3200mm x 2000mm x 2000mm(H)

Cabinet insulation : 150mm thick PUF panels with 01 service door

Refrigeration load :10.4 KW at -40 Deg.C

Refrigerant : R-404a

Compressor : Semi-hermetic / air cooled / Bock/Biter/Emerson make

Power input : 10.0 KW approx.

Evaporator : Mech Air make Blast evaporator from ½” copper pipe and al. fins with 4FPI with electrical heaters of 3 kw

NOTE : all data is for reference only , size and quantity may change in actual

SR NO DESCRIPTION Qty Reqd

1 Product Feeding Conveyor 1 no

2 Blancher 1 no

3 Counter Flow Cooler 1 no

4 Vibratory Screen Conveyor 1 no

5 Transfer Conveyor 1 no

6 IQF ( Spiral Conveyor ) 1 no

7 Refrigeration for Spiral Freezer 1 set
