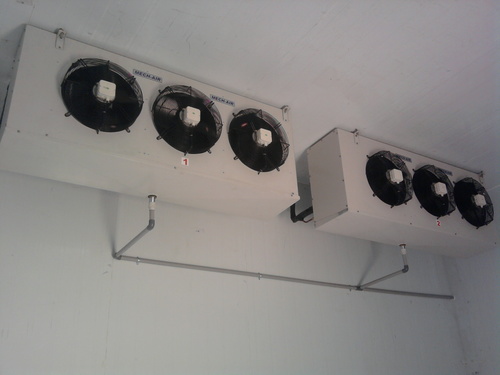

Chilly Cold Storage

Chilly Cold Storage
Chilly Cold Storage
Product Code : CCS-10
Product Description

Being a quality certified firm, we are affianced in manufacturing, exporting and supplying the best grade Chilly Cold Storage. Offered storage is equipped with high refrigeration system, fully automatic control system and eco- friendly refrigerant. With the aid of ultra modern technology, this storage is manufactured by our dexterous professionals in numerous specifications. Provided storage is used for preserving meat, dairy product, sea food and many other perishable items in bulk. Additionally, this Chilly Cold Storage can be purchased from us at cost effective prices.

Key Points:

  • Long working life
  • Low energy required
  • Simple to install
  • Robust design









Basis of design for cold storage


  1. Proposed room size

20 ft x 10 ft x 11 ft (H) Ext.dim.

  1. No. of rooms

01

  1. Product to be cooled

Dry chilly, coriander etc.

  1. Qty of product to be stored

5 MT

  1. Insulation of room

Prefabricated 80mm PUF Panels with 40+/-2

kg/m3 Density inside and outside Pre Painted 0.5mm Thick GI Sheets with cam lock for air tight construction, facing material GI precoated sheets & Flooring with 60mm PUF panels & tarfelt. Kota stone flooring by you

  1. Expected temp. before

Cooling (Product incoming temp.)

+35ºC

  1. Temp. after cooling (Final

product Temp./ Room temp )

+12-15ºC with RH -50-55%

  1. Time for cooling (Pull down time)

24 hours

  1. Type of cooling

Room Air cooling

  1. Outside ambient temp. for insulation purpose

52 Deg.C maximum

  1. Ambient temp. for design of refrigeration system

+45ºC

  1. Door specification

0.9 x 2.0mtr(H) clear opening with manual swing

  1. Material packing

Plastic / gunny bags

  1. Cooling unit

Mech Air make refrigeration unit

Model: MEC-120 x 1 nos.

  1. Refrigerant

R-22

  1. Compressor make

Emerson

  1. Compressor type

Hermetic

  1. Compressor Power consumption

1.5 kW per machine
