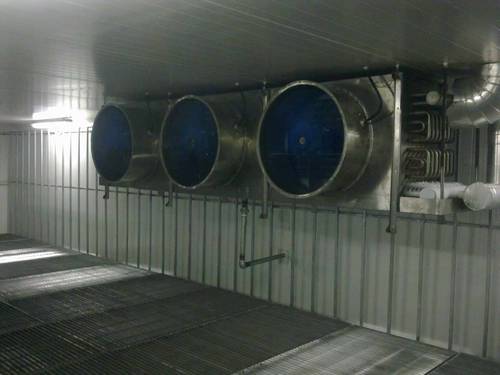

Blast Freezer Unit

Blast Freezer Unit
Blast Freezer Unit
Product Code : BFU-01
Brand Name : MECHAIR INDUSTRIES
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • -
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • ASPER CUSTOMER DESIGN Per Day
  • Delivery Time
  • 10 Days
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO:9001-2008
Product Description

Counted amidst the reliable firms, we are engaged in manufacturing, exporting and supplying an excellent grade range of Blast Freezer Unit. Featured with highly efficient heat exchanger coils, this product is extensively demanded in food processing industries. Offered product is used to preserve food at a very low temperature to prevent the growth of microorganisms. Additionally, the provided product is manufactured under the guidance of diligent professionals using latest techniques. Our patrons can purchase this Blast Freezer Unit from us at marginal prices.

Key Points:

  • Automatic defrost modes
  • Energy saving
  • Long operational life
  • Simple to install









Basis of design for Blast Freezer – 120 kg [ 2 HOURS ]


Proposed Blast Freezer size

14tft.(W) x 12ft.(D) x 11ft.(H)(Int.Dim.)

Rooms nos.

04 nos.

Freezer Insulation

Prefabricated 120mm PUF Panels inside and outside Pre Painted 0.5mm Thick GI Sheets & Flooring with 120mm PUF panels & tarfelt. with 20mm thick marine ply with 4 mm thick MS chequered plate coated with Epoxy paint.

Product to be frozen

Fruits

Product core temperature of frozen

(-)22C [room temp – (-)28 Deg.C]

Quantity to freeze

120 Kgs

Pull down time

2 HOURS

Incoming product temperature

+35ï‚°C

Door

Clear door opening of approx. 0.9m x 2.0m(H) 120mm thickness with manual swing x 1 no. with door heater


Ambient temperature

42 Deg.C

Freezing unit for chamber

Mech Air make refrigeration unit in which condensing unit is of Frascold make compressor and evaporating unit of mech air make with control panel


Refrigerant

R-404a

Compressor Type

Semi Hermetic type single stage reciprocating

Ambient temperature

45 Deg.C

Evaporating temperature

-35 Deg.C

Condensing temperature

49.8 Deg.C

Refrigerating capacity

6.23 kw

Heat load

5.28 kw

Power input

6.460 kw

Current

12.75 A

Brief technical data of evaporator

Capacity delivered – 6.74 kw / Fan motor – 2 fan x 500mm dia / air throw 20M / air volume: 11400 CMH / Fin Spacing – 7 mm /Dimensions 2.05 x 0.56 x 0.76M (H)

Condensor cooling

Air-Cooled

Electrical supply

415V 3 Phase 50 Hz

Quantity

01 set (One condensing unit + One Evaporating unit + Control panel+ temperature controller cum indicator)


Fan for evaporators

Axial flow fans

Room lighting

4 Watt/m2 with vapour proof light fixture

CONTROL PANEL FUNCTION


  1. High voltage & under voltage protection & High Temperature alarm

  2. Single Phasing Preventor

  3. Indication on Panel like – Power on, compressor, supply voltage trip, HP & LP trip, overload trip

  4. Overload protection for compressor

  5. Temperature controller function:

    • Temp. setting of room

    • Display of high temp & low temp

    • Differential between cut-out & cut-in temp

    • Probe calibration

    • Time delay for start up & compressor restart

    • Air Defrost function

    • Key Lock Pad & Relay status on probe failure


Switchgears

All of reputed make will be used

Coils & pipe

All coils & pipes are of copper make duly insulated

Temperature sensor

With sensitivity ±1 Deg.C

Electrical supply required

415V/3 phase/50 HZ

Condensor cooling

Air-cooled
