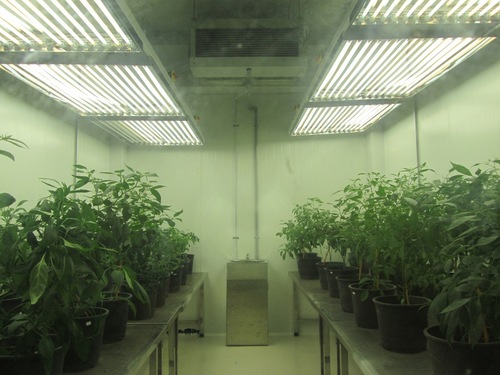

Seed Growth Chamber

Seed Growth Chamber
Seed Growth Chamber
Product Code : PGC-19
Product Description

Relying upon our highly developed infrastructure unit, we are engaged in manufacturing, exporting and supplying the finest quality Seed Growth Chamber. Our offered chamber is equipped with incubators, humidity controller, spray nozzle and timer for the proper plant growth. Offered chamber is extensively demanded to be installed in  agriculture industries. In addition, this Seed Growth Chamber is available in numerous specifications at reasonable prices.

Key Points:

  • Anti germ treated
  • Highly effective
  • Long working life
  • Safe and reliable to use















Technical specifications for

Step in Germinator having temp., humidity & light automatic controller



  1. Proposed room size for Germinator

11ft. x 11ft. x 7ft.9 in.(H)(Int.Dim)

  1. No. of rooms

01 no.

  1. Product to be tested

All types of seeds

  1. Insulation of room

60mm PUF panels with 40±2 kg/m3 density & other detailed technical specification as per overleaf

  1. Flooring

60mm PUF panels over and above 12mm marine ply & 1.2mm thick Al. checkered plate will be provided

  1. Insulated Door specification

As per overleaf

  1. Expected temp. before

cooling(Product incoming temp.)

+35 Deg.C

  1. Temp. after cooling (Final product Temp./ Room temp )

+20 to 40 Deg.C

  1. Relative humidity

85-90%

  1. Time for cooling (Pull down time)

12 hours

  1. Type of cooling

Room Air cooling

  1. Outside ambient temp. for insulation purpose

52 Deg.C maximum

  1. Ambient temp. for design of refrigeration system

+45 Deg.C

  1. No. of door openings

6-8 times/day

  1. No. of occupants

2 persons for 2 hours/day

  1. Storage details of product

Plastic trays

  1. Total heat load

15000 btu/hr

Germinator will be of movable type with wheel.

Inside of the germinator will have suitable rack provision for placing germination trays.

Interior and exterior ramp will be provided.

View port on PUF panels of size 1ft. x 1ft. will be provided.

  1. Racks inside the room

Slotted Angle Racks as per IS 1883/1983

Size:1875H x 900W x 500Dmm (H) having 6 shelves including top & bottom making 5 compartments removable type on Angle 2mm made from thick rolled angle & shelf sheet thickness 20 G duly powder coated with castors

Racks per room – 10 nos.


  1. Cooling unit

Mech Air make refrigeration unit Model:MEC-120 x 1 nos. complete with condensing unit, evaporating unit & control panel

  1. Humidifier

with humidity control(Humidity state – Honeywell make) of range 5 ltrs. Capacity with SS bowl, float valve & castor wheels

  1. Refrigerant

R-22

  1. Compressor

Copeland

  1. Compressor type

Hermetic

  1. Compressor Power consumption

1.3 Kw per machine

  1. Fan for evaporators

Axial flow fans – 2 nos. per evaporator

  1. Room lighting

Automatic timer controller (Minilec make) of 12 hours dark and 12 hours light having a light system of 2000 lux

  1. Control panels

Details as per over leaf

  1. Switchgears

All reputed make will be used

  1. Coils & pipe

All coils & pipes are of copper make duly insulated

  1. Temperature sensor

Thermometer – PT-100 with sensitivity +/-1 Deg.C

  1. Electrical supply required

415V/3 phase/50 HZ

  1. Condensor cooling

Air-cooled
